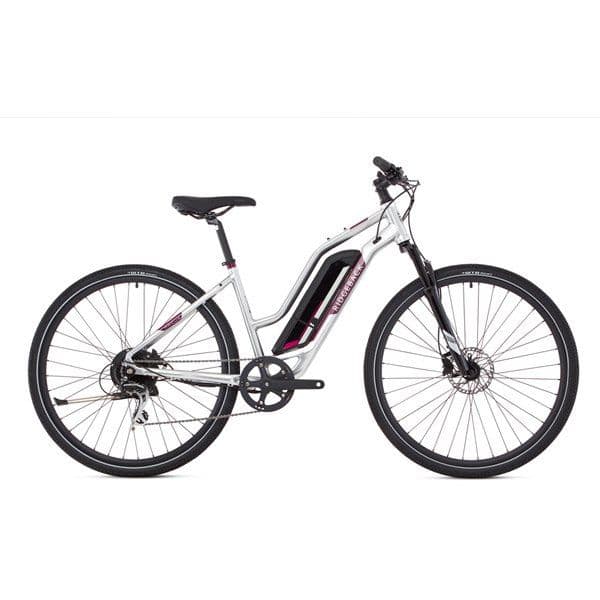

Ridgeback Arcus 1 Electric Assist Hybrid Women's
The second generation of the Arcus has become more refined without loosing any of its original practical charm. The Arcus 1 is built around a 6061 heat treated aluminium lightweight and strong frame which is paired with a 63mm travel suspension fork which makes sure you maintain a comfortable ride whatever the terrain. Equipped with a 313wh battery and a Sportdrive M155 250w/40nm hub motor we have made sure you are covered when you require any type off assistance out on the ride.
| Frame | SPORTDRIVE 6061 HEAT TREATED ALUMINIUM |
|---|---|
| Rear Shock | |
| Fork | ZOOM CH187, 63MM TRAVEL |
| Headset | FSA HS NO.10 1-1/8" |
| Shifters | SHIMANO ACERA SL-M310 8-SPEED |
| Rear Derailleur | SHIMANO ACERA RD-M360 8-SPEED |
| Front Derailleur | N/A |
| Chainset | SPORTDRIVE 170MM, 42T |
| Bottom Bracket | N/A |
| Chain | KMC X8E |
| Cassette / Freewheel | SHIMANO CS-HG31-8 11-34T |
| Rims | ALLOY J19SZ 36H |
| Hubs | KT-TD8F / SPORTDRIVE M155 36H |
| Spokes | STEEL 14G |
| Tyres | WTB RIDDLER 700x45C REFLEX |
| Brakes | SHIMANO BR-MT200 HYDRAULIC BRAKES |
| Brake levers | SHIMANO BL-MT200 HYDRAULIC BRAKES |
| Handlebars | ALLOY 9DEG BACKSWEEP, 31.8MM BAREBORE, 680MM WIDTH |
| Stem | ALLOY, 65MM, +9DEG |
| Saddle | RIDGEBACK METRO |
| Seatpost | ALLOY 27.2x350MM |
| Pedals | RIDGEBACK METRO |
| Drive Unit | SPORTDRIVE M155, 250W, 40NM |
| Battery | SPORTDRIVE 313WH |
| charger | SPORTDRIVE 2AH |
For information on sizing and geometry of this bike please click here.
